Description

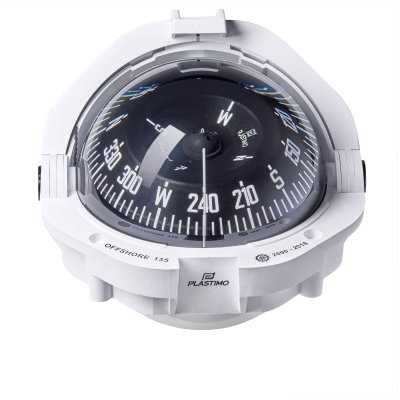

The famous Offshore compass with built-in articulated hood, most popular on open dayboats, RIB's, power cruisers and catamarans.
Flush- or bracketmount, it adapts to all steering pods or dashboards and offers optimal readability.
Magnetic cell construction features shock absorbers for added resistance to vibrations and hull pounding.
5 years warranty
Compass card : Graduated every 5°, Heading numerals every 30°.
Hood/sunshade : articulated protective hood : built-in sliding cover, composed of 3 telescopic parts.
Mounting : comes as standard in a flushmount version. Can be bracket-mounted with the addition of optional bracket.
Resistance to vibrations and hull pounding : magnetic cell mounted on shock absorbers.
Lubber line : 1 lubber line.
Lighting : 12-24 V. LED
A bracket-mount compass consists in one flushmount compass, plus one bracket kit (indicate both references when ordering).
Bracket for Offshore 135
The optional bracket makes bulkhead mounting easier while avoiding to cut the dashboard.
The bracket slides onto a fixing plate, allowing easy removal.
The bracket kit includes the actual bracket and the adequate screws.
Black bracket : 17260
White bracket : 17262

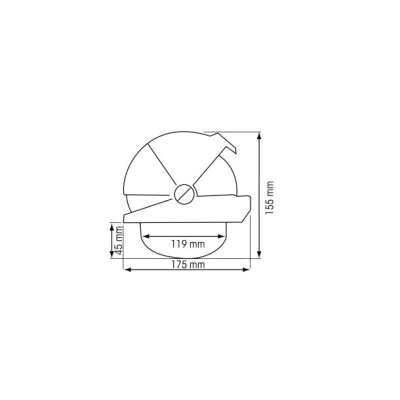

Technical Characteristics
Built-in dimensions:119 mm
Compensation:Included
Colour:White
Card colour:Black
Base diameter:175 mm
Card apparent diameter:130 mm
Compass lighting:Included
Homologation:SOLAS ISO 25862
Boat length:10 +
Typical boat size:Tower boat
Voltage:12 / 24 V
Mounting method:Flush mount
Card type:Conical
Compass balancing:Zone A
