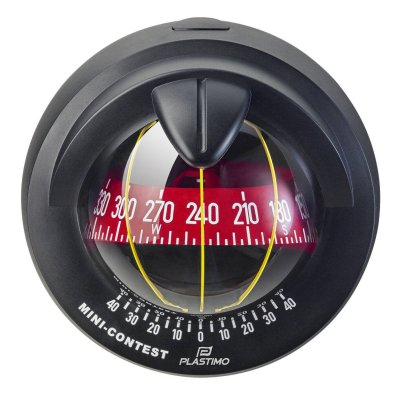

COMPASS MINI CONTEST2 black CONIC CARD ABC

Description

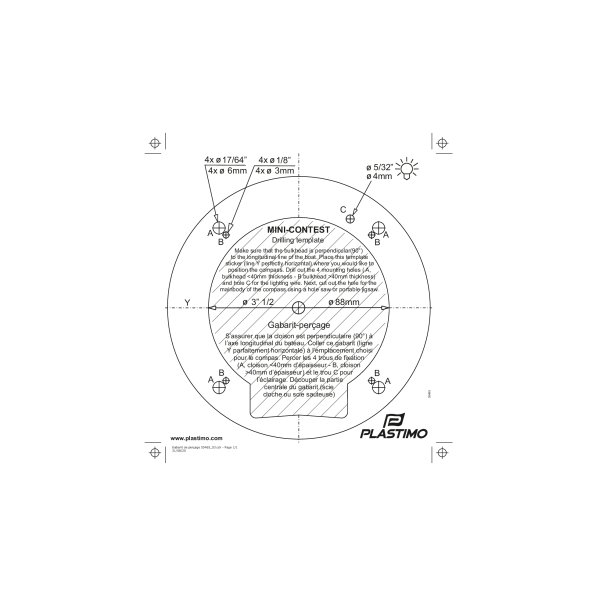

Features the legendary accuracy and legibility of the Contest card, with a smaller footprint on bulkhead.Ideal on agile sailboats and sportsboats up to 9 m.5 years warrantyCompass card : graduated every 5°, Heading numerals every 30°.MountingLubber lines : 3 lubber lines, at 45°.Heelmeter : graduated every 10°.Lighting : 12-24 V. LEDSupplied with protective cover, drilling template, threaded rods.Watertight construction

One-piece moulded flange and front dome.
Viton® diaphragm with extreme expansion and retraction capacity : compensates the fluctuations in fluid volume caused by differences in temperature and atmospheric pressure, thus preventing the formation of bubbles.

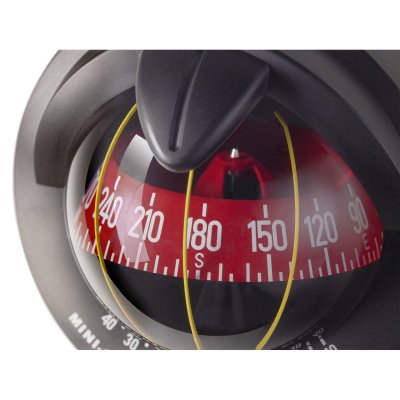

Card

Excellent legibility whatever the weather conditions and light.
Conical, highly stable, 81-mm apparent diameter.
Individually balanced.
Graduation every 5° and compact figures for easy reading.
3 lubber linesFor dependable readings even when steering windward.Materials

All parts fully UV-ray treated.
Scratch resistant dome.
LightingLED light spreads the illumination evenly over dome and card, and prevents eye strain and fatigue at night.Easy access to the light bulb from the front of the compass.MountingVertical bulkhead :

Mini-Contest is compatible with drilling Ø of former model same size.
Fits any bulkhead thickness :
- Standard thickness (40 mm max) : the compass is secured with threaded rods- Thick or double bulkhead : the compass is secured with Parker screws on both sides of the bulkhead.Options & accessoriesProtective cover Mini-Contest : black 55599Compensation : 17673

Technical Characteristics

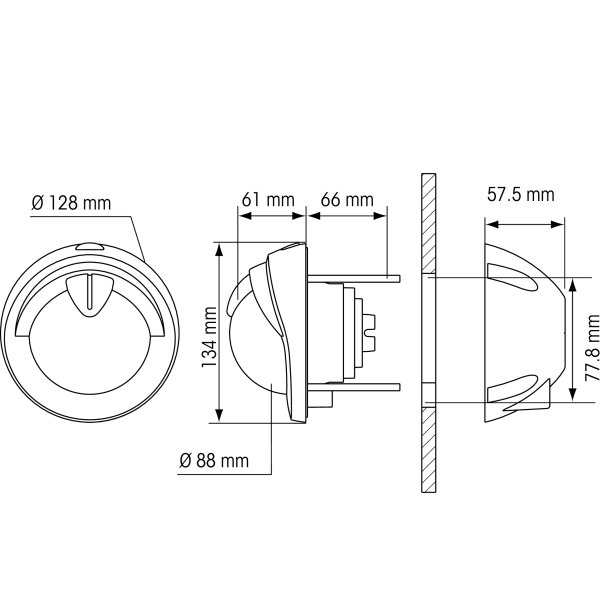

Built-in dimensions:78,8 mm
Compensation:optional
Colour:Black
Card colour:Red
Base diameter:134 mm
Card apparent diameter:81 mm
Compass lighting:Included
Homologation:ISO 25862
Boat length:Max. 9
Model:Cloison verticale
Typical boat size:Keel boat
Voltage:12 / 24 V
Mounting method:Bulkhead-mount vertical
Card type:Conical
Compass balancing:Zone ABC: Worldwide
