Description
5 years warranty
Universal balance: around the world with one compass
Compass card : graduated every 5°, Heading numerals every 30°.
Hood/sunshade : articulated protective hood: built-in sliding cover, composed of 3 telescopic parts.
Mounting : comes as standard in a flushmount version. Can be bracket-mounted with the addition of optional bracket.
Resistance to vibrations and hull pounding: magnetic cell mounted on shock absorbers.
Lubber line : 1 lubber line.
Lighting : 12-24 V. LED
A bracket-mount compass consists in one flushmount compass, plus one bracket kit (indicate both references when ordering).
Bracket for Offshore 105
The bracket kit includes the actual bracket and the adequate screws.
Black bracket 17268
White bracket 17267

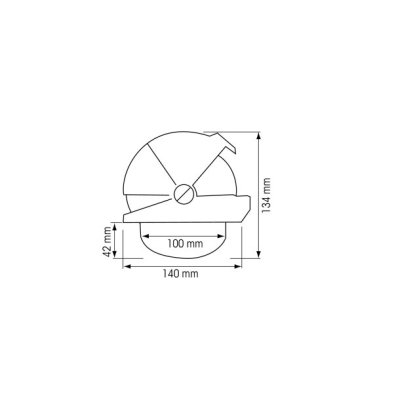

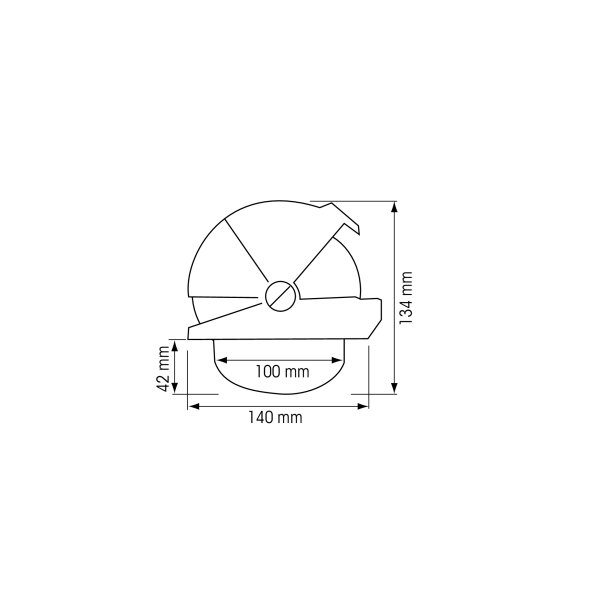

Technical Characteristics
Built-in dimensions:100 mm
Compensation:Included
Colour:White
Card colour:Black
Base diameter:140 mm
Card apparent diameter:91 mm
Compass lighting:Included
Homologation:ISO 25862
Boat length:5 - 10
Typical boat size:Tower boat
Voltage:12 / 24 V
Mounting method:Flush mount
Card type:Conical
Compass balancing:Zone ABC: Worldwide
