Description
Compass card : Conical or flat card graduated every 5°, Heading numerals every 30°.Resistance to vibrations and hull pounding : magnetic cell equiped with the unique "Vibration Absorber" system.Lubber line : 1 lubber line.Lighting : 12-24 V LED.Supplied with Clip-plate, screws, drilling template.5 years warrantyUniversal balance : around the world with one compass.CardOutstanding legibility under all weather and light conditions for optimum comfort and accurate readings.
Perfect stability of conical or flat card, 81 mm apparent diameter.
Every card is balanced individually in our workshops.
Graduation every 5°.
Lubber line : red, for instant recognition.Installation

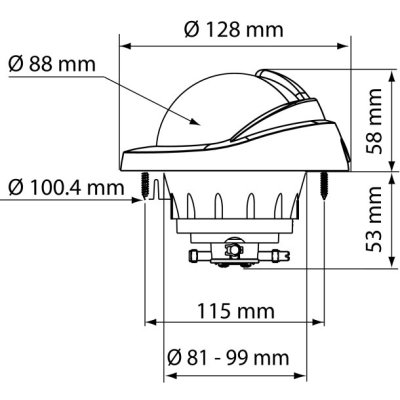

Flushmount on horizontal dashboard: compact design, interchangeable with Offshore 90 and most compasses of equivalent size.
Watertight construction
One-piece moulded flange and bowl.
Viton® diaphragm with extreme expansion and retraction capacity: compensates the fluctuations in fluid volume caused by differences in temperature and atmospheric pressure, preventing the formation of bubbles.
Materials
All parts fully UV-ray treated.
Scratch resistant dome.
LightingLED light spreads illumination evenly and prevents eye strain and fatigue at night.Access to compensation or lighting
Extremely easy access to compensation or lighting with unique flange-clip system.

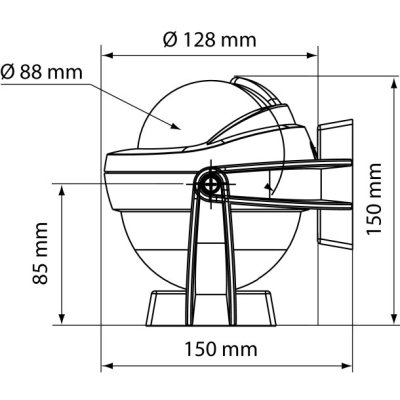

Compensation can be adjusted from the outside, with no need to open the compass on the racket version.
Optimum vibration-resistance for a perfect stability of the card. "Vibration Absorber" exclusive system : minimal contact between the pivot and the sapphire cup.Options
Protective cover : white : 55402, black : 55599
Plasticlip : 37035
Technical Characteristics
Compensation:Included
Colour:White
Card colour:White
Base diameter:128 mm
Card apparent diameter:91 mm
Compass lighting:Included
Homologation:ISO 25862
Boat length:6 - 10 m
Model:Encastré
Typical boat size:Motor boat
Voltage:12-2 4 V
Mounting method:Flush mount
Card type:Conical
Compass balancing:Zone ABC: Worldwide
